Voltage Meter 20A Led Dual Display Digital Power Voltmeter Ammeter VAM9020 AMP

Two input methods:2 wire and 3 wire; 2 wire model,the range is 10-90VDC, the 3 wire model,range is 0-90VDC. Show voltage and current together: also can show power, capacity, time. This is a 20A double display DC volometer which can show output voltage and output current together, through the internal mathematical operation, also can display power (W) and current (AH), it is a excellent tool to test devices & equipment, such as measuring voltage, monitoring battery & electrical system and so on.

Features

• 100% Brand new
• Flexible online calibration
• Design for 20 A current, support external shunt,maximum current unlimited expansion

Specifications

• Two wire system input voltage: 10-90V
• Three wire system input voltage: 0-90V
• Output Current: 0-20A
• Display: 4 bit LED (3 bit for value and 1 bit for unit)
• Measuring rate: 5times/s

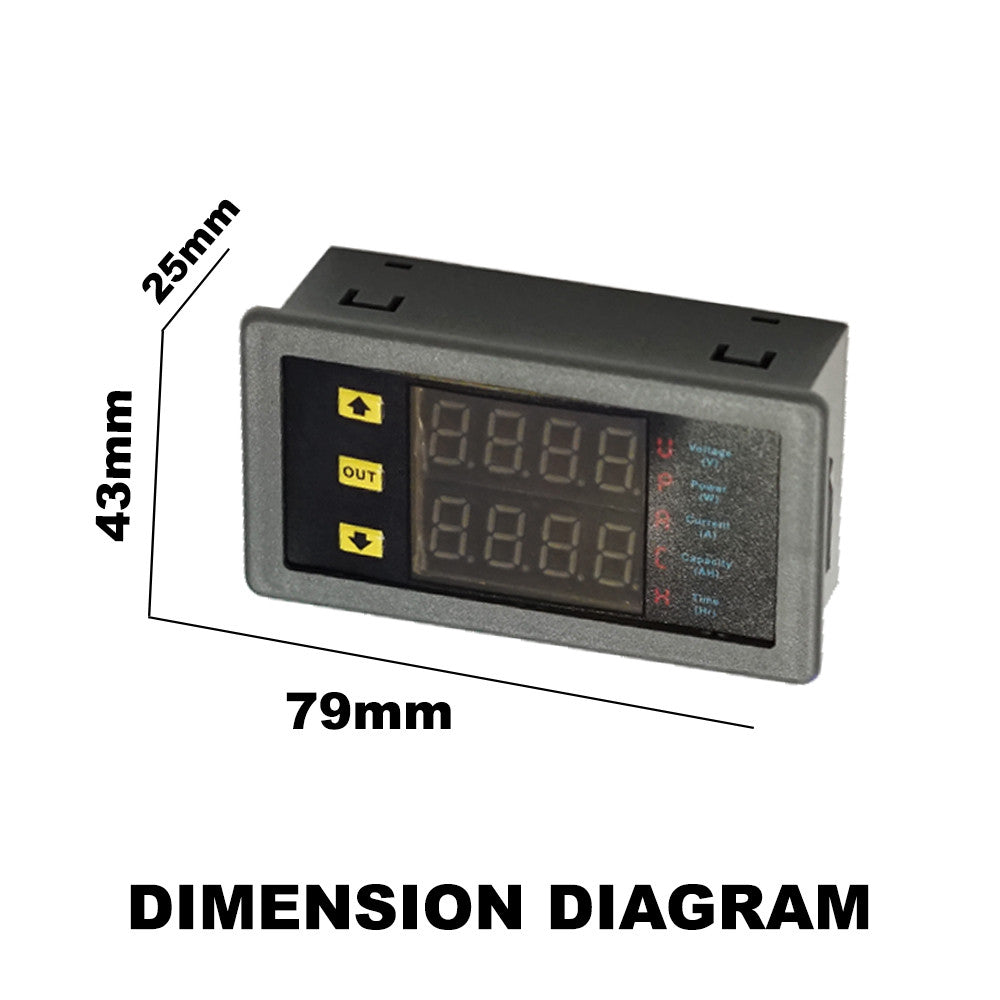

• Dimension (W*H*D): 79x43x25mm
• Installing hole(mm): 76.5*39.2
• Weight: 64g

Warranty

• 1 Year Warranty

Package Contents

• 1 x 20A Ammeter Meter VA Meter
• 1 x User Manual
