60A 12V-24V LCD Display PWM Solar Panel Regulator Charge Controller Battery
60A 12V-24V LCD Display PWM Solar Panel Regulator Charge Controller Battery
Couldn't load pickup availability
Solar controller has specifically designed to meet the needs of the rural electrification market. The low cost resulted from using the latest electronic technology and high volume manufacturing. We are reputable trader of solar charge controllers,power inverters,and solar power systems. All our products are designed for high quality and high reliability. The controller has a low failure rate and will last a long time. The solar controllers are built-in electronic fused that do not require replacements. The solar controlers electronics are protected with moisture-tight coating, minimizing damage from humidity and from nesting insects. Solar controller is fully automatic and requires no adjustments or user selections.
Features
- PWM battery charging
- All necessary protections equipped
- LCD display
- Adjustable controlling parameter of the system
| Rated Current | 60A |
| Rated system voltage | 12V/24V auto work |
| Voltage of solar panels | â¤48V |
| Float charging voltage | 13.8V/27.6V |
| Low voltage protection | 10.7V/21.4V |
| Low voltage recovery | 12V/25V |
| Characteristic |
No load loss:â¤30mA; Loop voltage drop:â¤200mV; Temperature compensation:-4mV/Cell/â |
| Working Environment |
Operating Temperature:-20â~50â; Storage temperature:30â~70â; Humidity requirements:â¤90ï¼ ,no condensation |

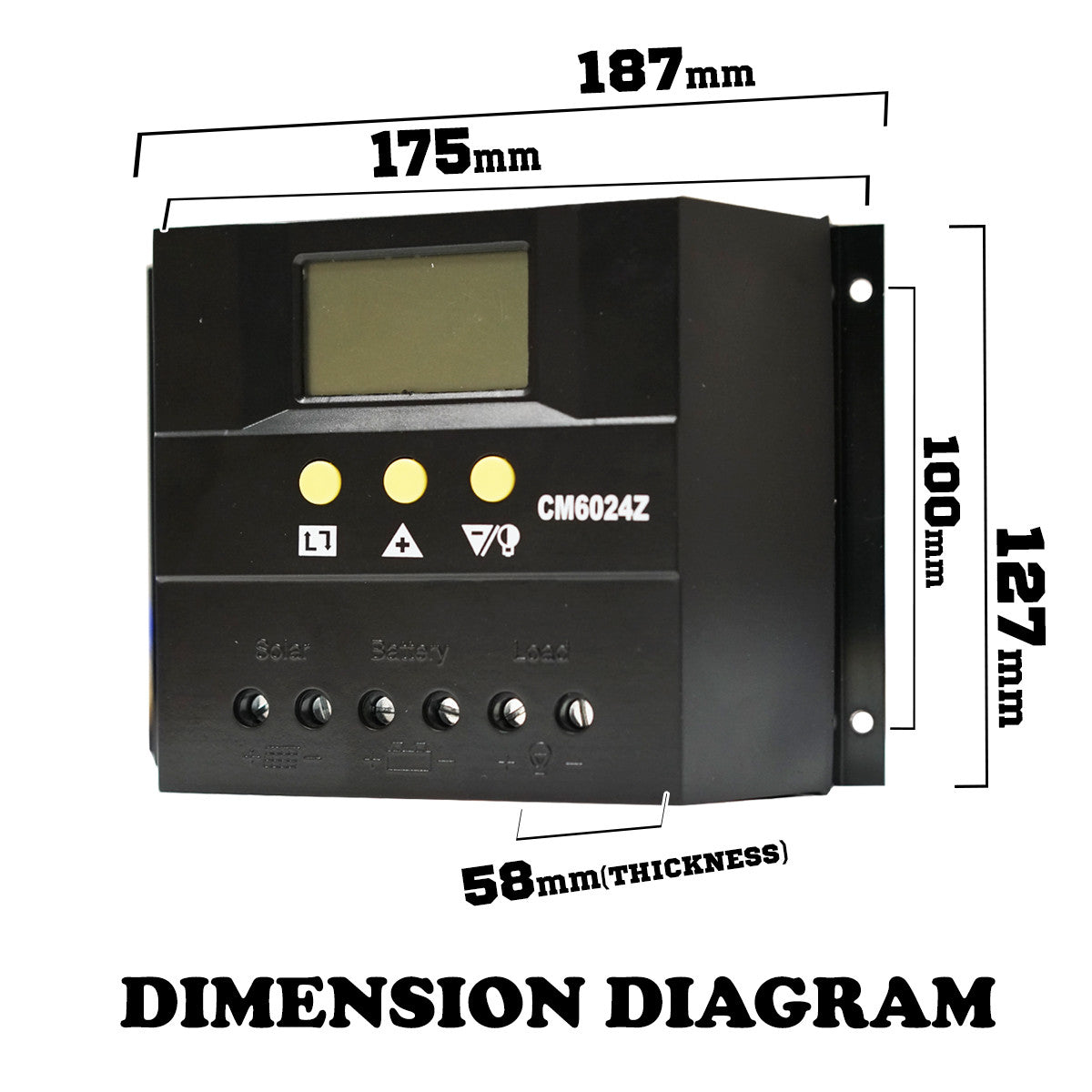

| Mounting hole spacing | 100mm X 175mm--Φ5 |
| Dimension | 187 Ã127 Ã58mm |
| Weight | 700g |
Warranty
Package Contents
- 1 x Solar Charge Controller
- 1 x User Manual
- 2 x Anderson Style Plug
- 4 x Terminal
| Rated Current | 60A |
| Rated system voltage | 12V/24V auto work |
| Voltage of solar panels | â¤48V |
| Float charging voltage | 13.8V/27.6V |
| Low voltage protection | 10.7V/21.4V |
| Low voltage recovery | 12V/25V |
| Characteristic |
No load loss:â¤30mA; Loop voltage drop:â¤200mV; Temperature compensation:-4mV/Cell/â |
| Working Environment |
Operating Temperature:-20â~50â; Storage temperature:30â~70â; Humidity requirements:â¤90ï¼ ,no condensation |
| Mounting hole spacing | 100mm X 175mm--Φ5 |
| Dimension | 187 Ã127 Ã58mm |
| Weight | 700g |
- 1 x Solar Charge Controller
- 1 x User Manual
- 2 x Anderson Style Plug
- 4 x Terminal
